3 Ton Double Speed Explosion Proof Hoist for Sale Pakistan

DQCRANES is a leading manufacturer of explosion proof electric hoists with over 20 years of experience in the industry. We are committed to providing our customers with high-quality, safe, and reliable products that meet their specific needs. Our explosion proof hoists are widely used in a variety of industries, including oil and gas, petrochemical, mining, and power generation.

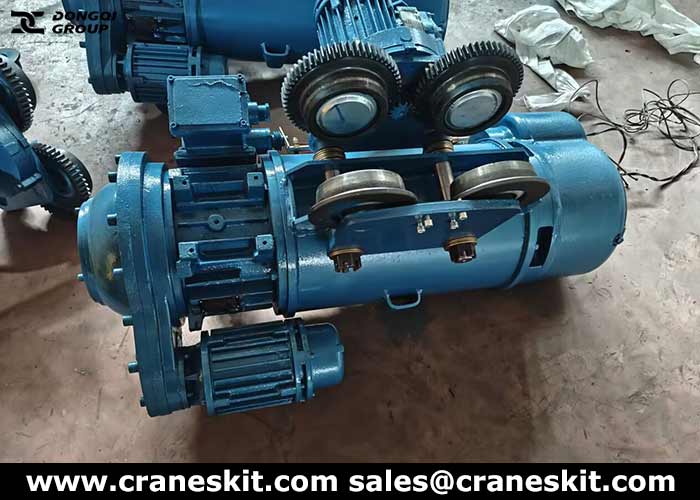

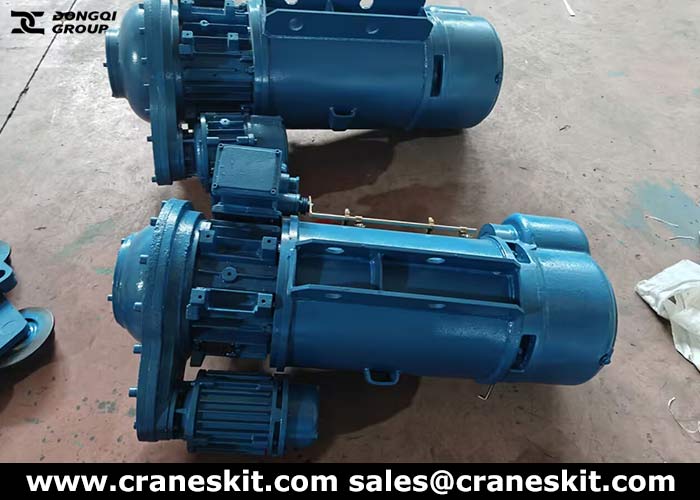

Recently DQCRANES exported a 3 ton explosion proof double speed hoist with double speed to a customer in Pakistan. The customer, a large oil and gas company, was looking for a safe and reliable hoist to use in their hazardous environments. They were particularly impressed with the hoist's explosion-proof design and its heavy-duty construction. The customer has been very satisfied with the performance of the hoist and has since ordered additional units.

Product Specifications:

1. Capacity: 3 tons
2. Lifting speed: 10 m/min (fast speed), 5 m/min (slow speed)
3. Working duty: M4
4. Trolley travel speed: 20 m/min
5. Motor power: 2.2 kW
6. Power supply: 380 V/50 Hz
7. Protection class: IP55
8. Explosion-proof grade: Ex d IIB T4


An explosion-proof electric wire rope hoist with double speed design is a lifting device specifically engineered for hazardous environments where flammable gases, vapors, or dust particles are present. It incorporates a dual-speed motor mechanism that enables both fast and slow lifting operations, enhancing work efficiency and precision.

Key Design Elements:

• Explosion-Proof Enclosure: The hoist's enclosure is meticulously crafted to prevent the ignition of surrounding flammable materials. This is achieved through the use of flameproof joints, spark-free components, and robust casings that can withstand internal explosions.
• Dual-Speed Motor: The hoist employs a dedicated motor with two distinct speed settings, typically a high speed for rapid lifting and a low speed for precise positioning. This versatility caters to various lifting tasks, from quick material transport to delicate component handling.
• Electrical Safety Measures: The hoist's electrical system is rigorously designed to eliminate potential ignition sources. This includes employing intrinsically safe circuitry, isolating electrical components from the surrounding environment, and utilizing spark-suppressing devices.
• Robust Lifting Mechanism: The hoist's lifting mechanism is constructed from durable materials and incorporates redundant safety features. This ensures reliable and safe operation even in demanding industrial settings.
• Compliance with Standards: The hoist adheres to stringent international safety standards, such as IECEx and ATEX, guaranteeing its suitability for hazardous environments.

Benefits of Double-Speed Design:

1. Enhanced Efficiency: The dual-speed feature allows for faster lifting of heavy loads, reducing cycle times and improving overall productivity.
2. Precision Positioning: The low-speed setting enables precise maneuvering and positioning of loads, particularly for delicate or sensitive equipment.
3. Versatility: The double speed hoist caters to a wider range of lifting tasks, from rapid material handling to precise component placement.
4. Safety: The dual-speed design promotes safer lifting practices by minimizing the time spent handling heavy loads at high speeds.

Applications:

• Chemical Processing Plants: Handling flammable liquids and gases.
• Oil Refineries: Lifting components in hazardous areas.
• Paint Manufacturing Facilities: Moving flammable materials and equipment.
• Grain Silos: Handling combustible dust and grain.
• Power Generation Plants: Lifting heavy machinery in potentially hazardous environments.

Explosion Proof Hoists for Sale Pakistan:

1. electric chain hoists are the most common type of explosion proof hoist. They are used in a variety of applications, including lifting materials in hazardous environments such as oil refineries, chemical plants, and paint shops. Explosion-proof electric chain hoists are typically powered by a motor and have a lifting capacity of up to 20 tons.
2. Wire rope hoists are another popular type of explosion proof hoist. They are similar to electric chain hoists, but they use wire rope instead of chain to lift materials. Explosion-proof wire rope hoists are typically more powerful than electric chain hoists and have a lifting capacity of up to 50 tons.
3. Explosion-proof Electric Winch is a type of winch that is designed to be used in hazardous locations where there is a risk of explosion. These winches are typically used in industries such as oil and gas, chemical, and pharmaceutical, where there may be flammable gases, liquids, or vapors present. Explosion-proof winches have a loading capacity of up to 20 tons.
4. Manual hoists are the least common type of explosion proof hoist. They are typically used in applications where there is no electrical power available. Explosion-proof manual hoists are operated by hand and have a lifting capacity of up to 5 tons.

How to Buy an Electric Hoist in Pakistan?

If you're looking for a suitable electric hoist in Pakistan, let's explore the factors you should consider before making a purchase:


• Weight Capacity: The weight capacity of the electric hoist is a crucial factor to consider. You need to determine the maximum weight you will be lifting to ensure that the hoist can handle the load safely. It is always recommended to choose a hoist with a higher weight capacity than your immediate needs to account for any future requirements.
• Lift Height: The lift height refers to the maximum distance the hoist can raise an object. Consider the height of your workspace and the maximum height you need to lift objects to ensure that the electric hoist meets your requirements.
• Speed and Control: Different electric hoists offer varying lifting speeds and control options. If you require precise control over the lifting process, look for a hoist with adjustable speed settings and advanced control mechanisms.
• Safety Features: Safety should always be a top priority when selecting an electric hoist. Look for features such as overload protection, emergency stop buttons, and limit switches to ensure safe operation.
• Durability and Maintenance: Investing in a durable and low-maintenance electric hoist is essential for long-term cost-effectiveness. Consider factors such as the materials used, ease of maintenance, and availability of spare parts when making your decision.


Contact DQCRANES today to discuss your needs and get a free quote. Our team of experts will be happy to help you choose the right electric hoist for your needs and budget.
