gantry cranes play a crucial role in the material handling process of fabrication workshops, providing efficient and reliable lifting solutions for heavy loads. Fabrication workshops require gantry cranes for various material handling tasks such as lifting and moving heavy components, loading and unloading materials, and positioning workpieces during the manufacturing process. Gantry cranes are ideal for improving productivity, ensuring workplace safety, and optimizing the workflow in fabrication workshops.
Client's Background
The client is a reputable fabrication workshop based in the UAE, specializing in producing structural steel components, industrial equipment, and customized metal fabrications. With a focus on delivering high-quality products and meeting tight project deadlines, the client recognizes the need for a single girder goliath crane to enhance their material handling capabilities.
Client's Detailed Requirements
The client has specific requirements for the
single girder gantry crane to meet their operational needs:
- Lifting Capacity: 5 tons
- Span: 20m
- Lifting Height: 6.5m
- FEM Standard Compliance: The crane must adhere to the FEM standards for safety and performance.
- Ease of Operation: The 5 ton gantry crane should be user-friendly and promote operator comfort.
- Durability and Safety: The electric gantry crane needs to be robust with precise control systems to withstand the demanding working environment.
FEM Crane Solution from DQCRANES

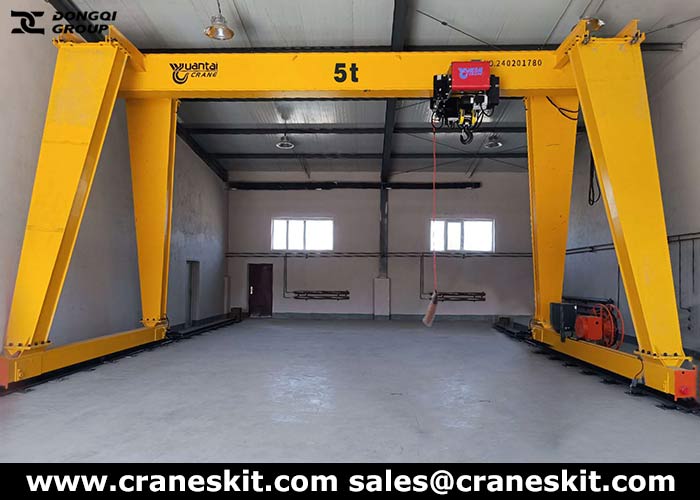

After carefully assessing the client's requirements, DQCRANES proposed a 5t gantry crane solution that complies with the European/FEM standard. This standard is recognized for its stringent requirements for design, manufacturing, and testing, ensuring that the gantry crane meets the highest industry standards for safety and performance.
Technical Data
- Lifting capacity: 5 ton
- Lifting height: 6.5m
- Span: 20m
- Lifting speed: 0.8/5m/min
- Traveling speed: 2~20m/min
- Power supply: 380V, 50Hz,3Phase
- Working class: A5
- Control method: Pendant control
Design Features
- Structural Integrity: This 5 ton gantry crane is designed with a robust steel structure, ensuring exceptional strength, rigidity, and resistance to deformation under heavy loads. This also ensures long-term durability and resistance to heavy loads and harsh working conditions.
- Advanced Hoisting Mechanism: The 5 ton gantry crane for sale is equipped with a high-performance hoisting mechanism - NR series European standard monorail hoist, featuring variable speed control, precise positioning, and smooth operation. This allows for efficient lifting and lowering of heavy components with precision.
- Safety Features: The European gantry crane incorporates advanced safety features such as overload protection, emergency stop system, and comprehensive safety devices to prevent accidents and ensure a secure working environment for the operators.
- Precision Control System: The FEM crane is equipped with a state-of-the-art control system that enables precise movement and positioning of loads, enhancing productivity and minimizing the risk of material damage during handling.
- Customization Options: DQCRANES offers customization options for the gantry crane, allowing the client to tailor the crane's specifications to their specific requirements, including span length, lifting height, and operational features.
- Compliance with Standards: The European standard design ensures that the gantry crane meets all relevant industry standards and regulations, assuring quality, performance, and reliability.
Gantry Crane Applications in Fabrication Workshops
- Lifting and transporting metal plates, beams, and pipes.
- Loading and unloading materials from trucks and trailers.
- Positioning and maneuvering heavy components during fabrication processes.
- Assembly and disassembly of large metal structures, etc.
Production and Installation

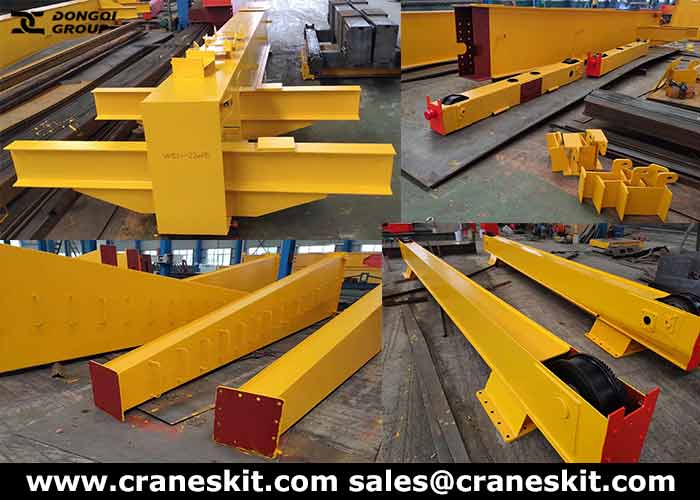

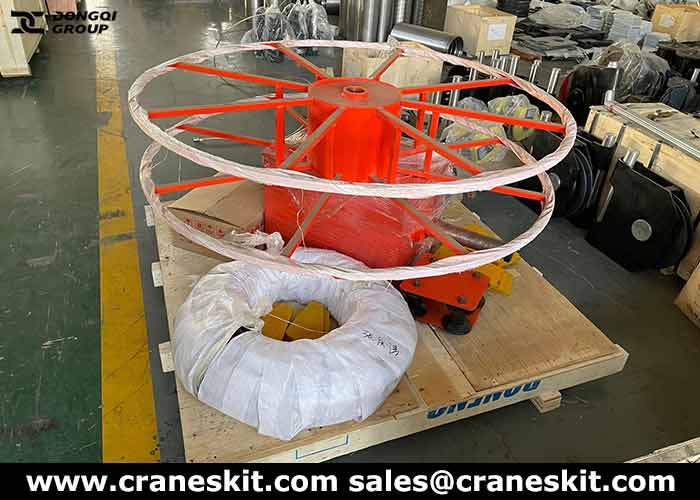

DQCRANES completed the production of the European standard 5 ton gantry crane and then shipped it to the client's workshop in the UAE, where a local team of experienced technicians handles the installation and commissioning process. DQCRANES will offer our clients 7/24 online installation guide with video, picture, paper instruction, etc.
Of course, all our cranes and hoists come with installation instructions, and we also provide on-site installation services if required.
Feedback
The fabrication workshop in UAE expressed high satisfaction with the DQCRANES' gantry crane solution. The crane significantly improved their material handling efficiency, enhanced workplace safety, and allowed them to undertake larger and more complex projects.
Gantry Cranes for Sale in UAE
Gantry cranes are essential for lifting and moving heavy loads in industrial and construction settings. Here are some of the types of gantry cranes for sale in UAE from DQCRANES:
- Single Girder Gantry Crane:
This type of gantry crane is designed with a single girder beam and is suitable for light to moderate lifting requirements. It is a cost-effective solution for workshops, warehouses, and storage yards.
Double girder gantry cranes are ideal for heavy-duty lifting operations. They are designed with two girder beams for increased stability and lifting capacity. These cranes are commonly used in shipyards, construction sites, and manufacturing facilities.
Semi-gantry cranes are designed to operate on one leg while the other end runs on a runway system. They are suitable for outdoor applications where only one side of the lifting area needs to be covered. This type of crane is often used in loading docks and outdoor storage yards.
- Rail Mounted Gantry Crane (RMG):
RMG cranes are commonly used in container terminals and intermodal yards for stacking and moving shipping containers. These cranes run on rails, allowing for efficient and precise container handling.
- Rubber Tired Gantry Crane (RTG):
RTG cranes are similar to RMG cranes but are equipped with rubber tires for mobility. They are commonly used in ports and terminals for stacking and moving containers more flexibly.
Portable gantry cranes are versatile and can be easily moved to different locations within a facility. They are ideal for temporary lifting needs or in facilities where a permanent crane installation is not feasible.
DQCRANES offers a wide range of gantry cranes with varying capacities, spans, and lifting heights to meet the specific requirements of different industries in the UAE. In addition to standard gantry cranes, we also provide customized solutions to suit unique lifting applications.
Contact DQCRANES today, we can provide expert guidance and support to help customers select the right gantry crane for their needs.
