Client's Background
Our client is a prominent warehousing company based in Italy, specializing in the storage and distribution of a wide range of products. With a focus on maintaining high operational standards, they constantly seek innovative technologies to streamline their processes and ensure optimal productivity.
Client's Challenges
The client encountered challenges in efficiently handling repair services within their warehouse. The existing lifting equipment was not suitable for the precise and safe maneuvering of heavy components during repair and maintenance tasks. This led to downtime and inefficiencies in their operations, impacting overall productivity.
Client's Requirements
Understanding the critical need for a reliable lifting solution, the client sought a 2 ton electric
jib crane that could provide precise and controlled lifting capabilities. They emphasized the importance of a design that could optimize space utilization within their warehouse while ensuring seamless integration with their repair and maintenance workflows.
In response to the client's requirements, our team proposed a tailored electric slewing pillar jib crane that offered both versatility and precision. The pillar jib is equipped with an incorporated advanced European standard
electric chain hoist, allowing for smooth and accurate lifting of heavy components during repair services. The compact nature of the 2 ton jib crane ensured minimal disruption to the existing layout of the warehouse, addressing the client's space optimization concerns.

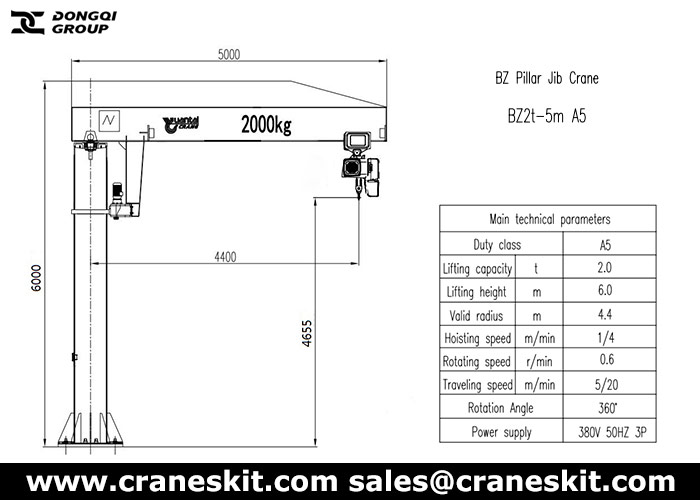

Design Technical Data
- Lifting capacity: 2 tons
- Lifting height: 4.655 meters
- Total height: 6 meters
- Valid radius: 4.4 meters
- Total arm length: 5 meters
- Hoisting speed: 1/4 m/min
- Rotating speed: 0.6 r/min
- Traveling speed: 5/20 m/min
- Rotation Angle: 360°
- Power supply: 380V, 50HZ, 3Phase
- Control mode: Pendent control
The electric pillar jib crane was meticulously designed to meet the specific needs of the client's repair services.
- The pillar mounted jib crane featured a robust steel structure with a high load-bearing capacity, ensuring safety and stability during lifting operations.

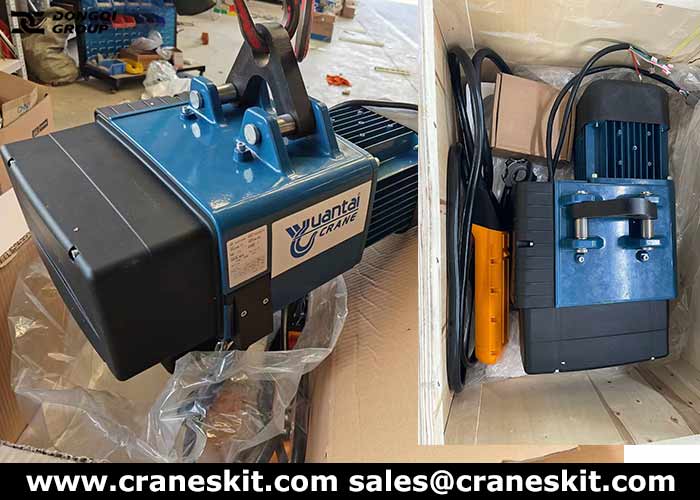

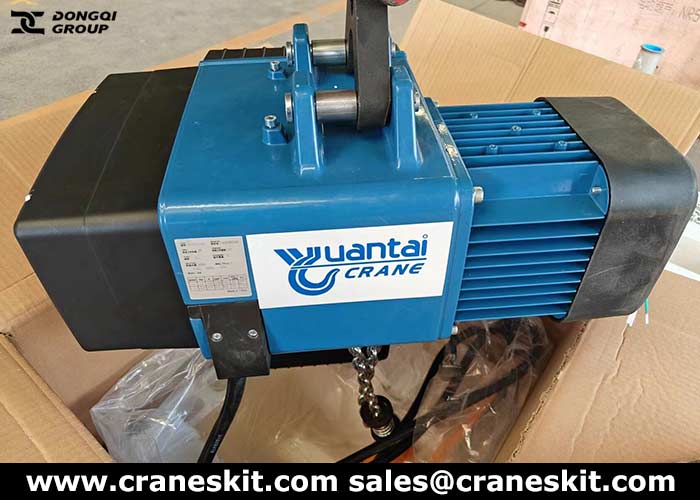

- The FEM electric hoist system integrated advanced control mechanisms, enabling operators to maneuver loads with utmost precision and efficiency.
- Additionally, the jib arm's rotation capability provided extensive coverage within the designated work area, enhancing accessibility during repair tasks.

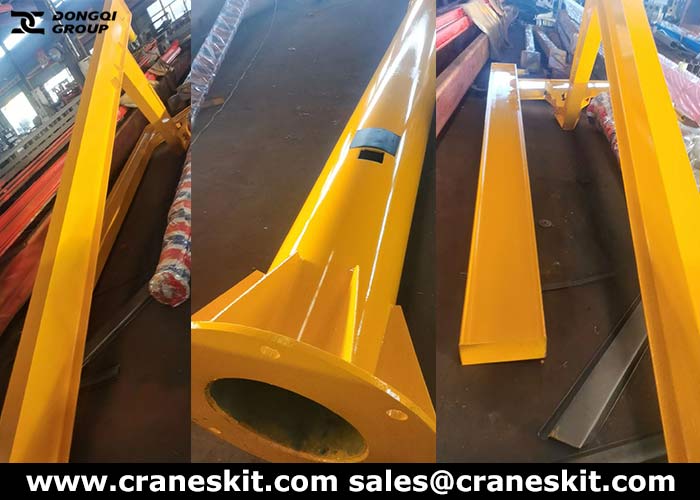

Production and Delivery
Upon finalizing the design details, our production team commenced the manufacturing process, adhering to stringent quality standards to ensure the reliability and durability of the electric pillar jib crane. The production phase was executed with precision and efficiency, culminating in the timely delivery of the customized lifting solution to the client's warehouse in Italy.
Feedback
Following the installation and integration of the 2 ton electric jib crane into their repair services workflow, the client provided positive feedback regarding the significant improvement in operational efficiency. The precise lifting capabilities and space-optimized design exceeded their expectations, enabling seamless execution of repair and maintenance tasks within the warehouse. The client expressed satisfaction with the tailored solution, emphasizing its pivotal role in enhancing their overall productivity and minimizing downtime.
Types of Jib Crane for Warehouse Applications
Jib cranes are a versatile material handling solution commonly used in warehouse applications. They are designed to provide efficient lifting and maneuvering of heavy loads within a limited area. At DQCRANES, Jib cranes for sale come in various types, each suited for specific warehouse requirements.
Free standing jib cranes are standalone units that do not require support from the building structure. They are mounted on a concrete foundation and can rotate a full 360 degrees, providing coverage to a large area within the warehouse. Free standing jib cranes are ideal for applications where overhead support is limited or when the building structure cannot accommodate a wall or column-mounted crane.
Wall-mounted jib cranes are fixed to the existing structure of the warehouse, typically to a vertical wall or column. They offer 180-degree rotation and are suitable for lifting and moving loads along a specific path within the warehouse. Wall-mounted jib cranes are space-saving solutions, as they do not occupy floor space, making them ideal for warehouses with limited space availability.
Articulating jib cranes, also known as knuckle jib cranes, feature a secondary arm that provides additional flexibility and reach. This type of jib crane is designed to maneuver around obstacles or reach into confined spaces within the warehouse. Articulating jib cranes are beneficial for handling loads in tight or hard-to-reach areas, making them a valuable asset in warehouses with complex layouts.
Mast-type jib cranes are characterized by a vertical mast that supports the horizontal boom. They offer both 360-degree rotation and lateral movement along the mast, providing extensive coverage and flexibility in load handling. Mast-type jib cranes are suitable for warehouses requiring versatile lifting capabilities and the ability to reach multiple workstations within the facility.
Portable jib cranes are designed for mobility and can be easily relocated to different areas within the warehouse as needed. They are typically mounted on a movable base with casters, allowing for quick deployment and repositioning to accommodate changing workflow requirements. Portable jib cranes are ideal for warehouses with dynamic operational needs or those requiring temporary lifting solutions.
Workstation jib cranes are compact units designed to serve specific workstations or production areas within the warehouse. They offer precise load positioning and ergonomic handling, making them suitable for repetitive lifting tasks or assembly line operations. Workstation jib cranes contribute to improved efficiency and safety in localized work areas, enhancing overall warehouse productivity.
Select a Jib Crane for Your Warehouse!
When selecting a jib crane for your warehouse applications, it is essential to consider factors such as load capacity, reach, rotation range, and operational environment. With the right selection of jib crane type, warehouses can efficiently manage material handling tasks while maximizing space utilization and workflow efficiency.
If you are considering implementing a jib crane in your warehouse or have specific requirements for material handling equipment, welcome to
contact us, DQCRANES will offer you a professional engineering team or material handling specialist to determine the most suitable jib crane solution for your unique operational needs.
