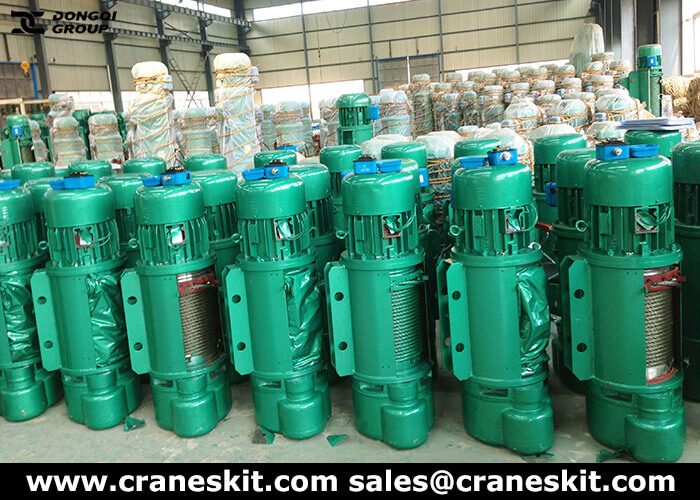

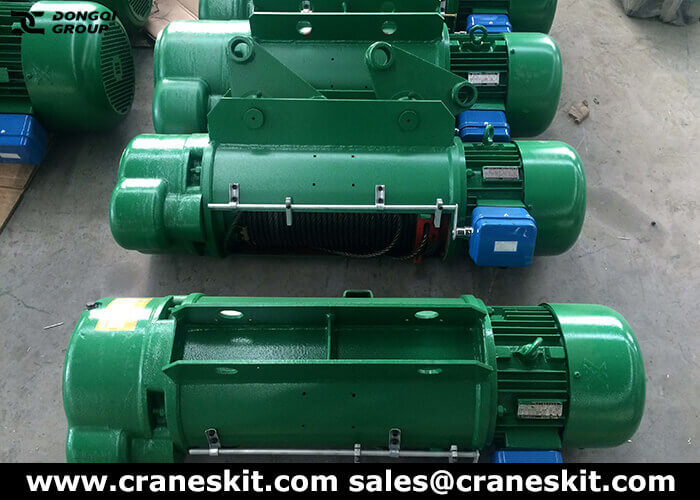

Electric Rope Hoist: 2 Ton Wire Rope Hoist for Sale to Montenegro

2 Ton wire rope electric hoist for sale to Montenegro is a small lifting equipment, small size, light weight, simple operation and easy to use. Electric rope hoist can be mounted on single beam overhead crane, gantry cranes, jib cranes, widely use in industrial and mining enterprises, storage dock, cargo storage area and workshops and other places. As a professional electric wire rope hoist supplier, Dongqi electric hoists can provide any capacity according to your requirement.

Electric Rope Hoist for Sale to Montenegro Customer:

• Quantity (sets): 4
• Lifting Capacity (t): 2 ton
• Lifting Height (m): 5
• Lifting Speed (m/min): 8 (0.8/8)
• Travel Speed (m/min): 20/30
• Rail: 16-28b
• Work Duty: M4
• Power: 3PH AC 380V 50Hz

Wire Rope Hoist Components Offered to Customer:

• Reducer: The third-class dead axle helical gear transmission structure is adopted; gear and gear axle are made of heat treated alloy steel, case and case cover with precise assembly and good seal are made of quality cast iron;the reducer is independent,so it is easy to load and unload it.
• Motor: Hoist Motor is an taper type rotor motor with braking, has bigger torque, can be adapted to moving frequently.
• Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings , to ensure smooth, low-friction operation.
• Wire Rope: Hoisting rope comply with the exporting ISO standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
• Rope Drum: Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
• Electric control system: Composed of the contactor box, controlling switch, cut-off limiter. It has device with up and down stoke protection of break off limiter and can cut off main circuit in an emergency, which ensures safety operation of electric block. Electric elements are of long service life and operational safety.
• Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.
• Hook: The Hook Block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting.
• Button switch: Easy to handle and has two modes of cord operation and cordless remote control.

Recommend Rope Hoists Working Conditions:

Wire rope hoist applies to such an environment as no explosive danger, no corrosive media and no dirt exist. And the temperature is between 20°C below zero and 40°C up zero, the wetness is no higher than 85%, the applicable power source is under your requirements.

Dongqi Wire Rope Hoist Applications:

• Wire rope hoist is the most widely applied among fixed cranes, such as overhead crane, cantilever crane, bridge crane, cable crane, container crane.
• Also can be mounted on single beam overhead crane, gantry crane and arm cranes.
• With slight modification, electric wire rope hoist can also be used as a winch.
• Widely used in material handling and cargo handling in factory, mine field, railway paving site, goods station and warehouse, essential in raising working efficiency and improving working conditions.

Dongqi Electric Rope Hoist Price:

As a crane hoist manufacturer & supplier, Dongqi offers many types of electric rope hoists for your selection. Electric wire rope hoist developed and manufactured by Dongqi Group is divided into the FEM standard electric wire rope hoist, single speed wire rope electric hoist, double speed electric wire rope hoist, explosion proof wire rope electric hoist and metallurgical electric wire rope hoist, all for sale at good price. Check Dongqi wire rope hoist and choose what you need, get electric rope hoist price now.
